New Tail-End DeNOx SCR Line in Italy
05.06.2024
The installations of the SCR plant were designed and optimized using CFD simulations to achieve optimal performance. The scope of the CFD optimization included:
- Guide vanes
- NH4OH injection system
- Static mixing system
In addition, we supplied several key components, including the injection and static mixing systems, as well as the ammonia flow control unit.

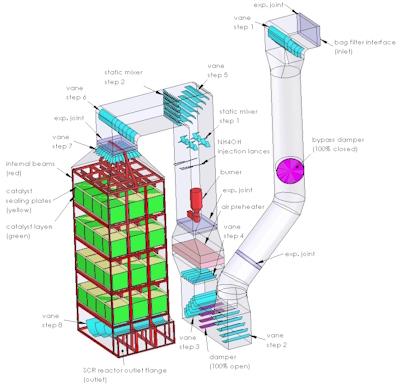

DeNOx SCR with installations

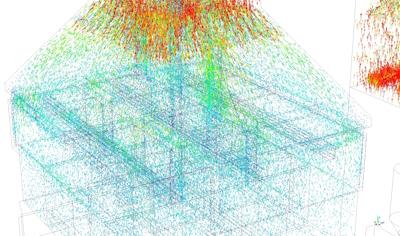

Velocity vectors upstream catalyst layer

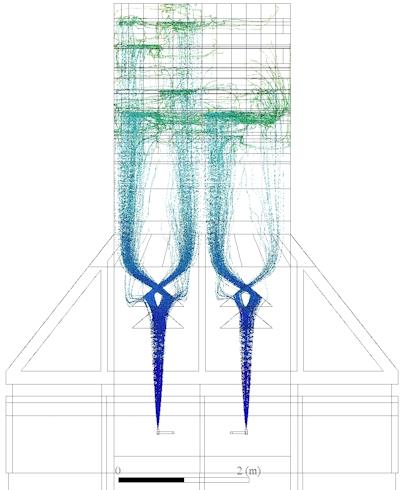

NH4OH injection system

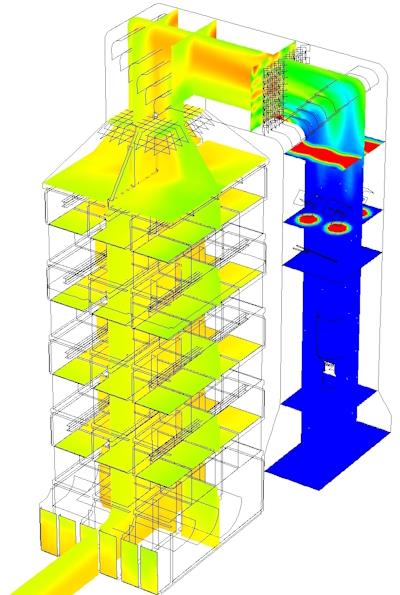

Ammonia distribution (injection and static mixing systems)
