Flow optimization of the SCR plant of a FCC Unit in the USA

01.06.2007

The CFD flow optimization study was complemented with experimental cold flow tests which were made in a scaled model of the SCR unit.

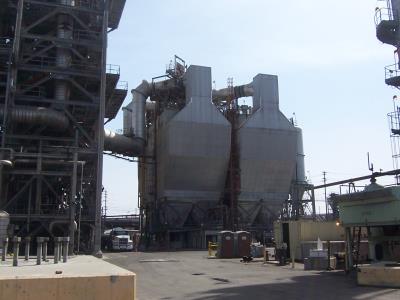

FCC unit (California, USA)

FCC unit (California, USA)

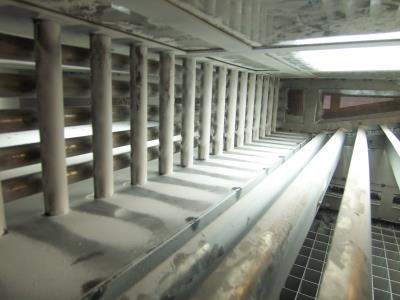

Dust deposition test (physical flow model)

Dust deposition test (physical flow model)

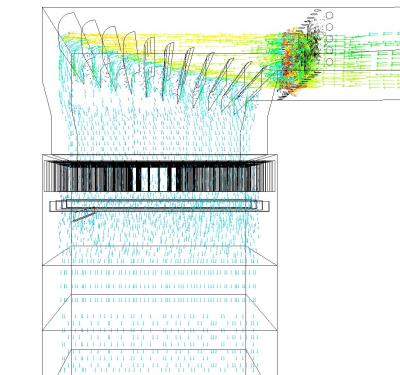

CFD plot (velocity vectors inside the SCR unit)

CFD plot (velocity vectors inside the SCR unit)



View of the FCC facility from the beach

View of the FCC facility from the beach

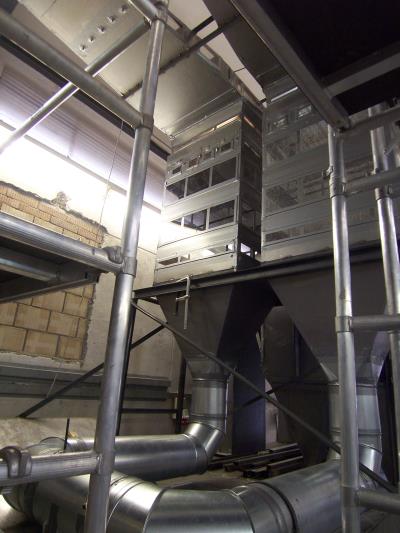

Physical flow model of the SCR unit

Physical flow model of the SCR unit
