Dust Suction System in a Slag Processing Hall in Switzerland

01.03.2018

Flowtech performed a CFD simulation study to reproduce the air flow and dust particle transport inside a slag processing hall. Different dust suction systems, such as open fans and a suction piping system, were tested prior to making design recommendations on it.

After their implementation, the dust concentration inside the hall decreased significantly.

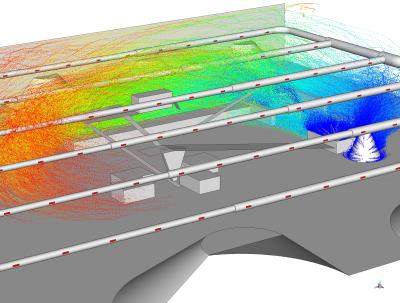

CFD visualization of the dust propagation in the hall

CFD visualization of the dust  propagation in the hall

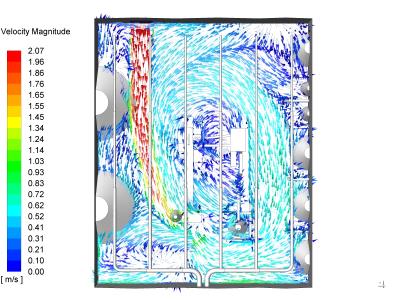

Air flow distribution inside the hall (velocity vectors)

Air flow distribution inside the hall (velocity vectors)

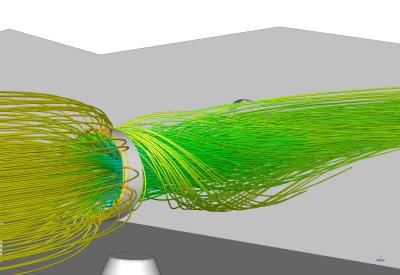

Stream-lines through the suction fan (CFD plot)

Stream-lines through the suction fan (CFD plot)

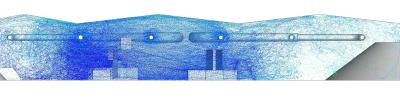

Dust distribution in the hall with pipe suction system

Dust distribution in the hall with pipe suction system
