Ammonia Injection Grid for a 500 MWe Gas-Fired Power Plant in Poland
01.07.2018
To ensure a proper NH3/NOx distribution across the SCR reactor of the large-scale CCGT power plant, we conducted an extensive CFD simulation study of the system prior to elaborating the detailed ammonia injection grid (AIG) design and the manufacturing plans.
As a result, we supplied the complete AIG ready to be mounted on site.

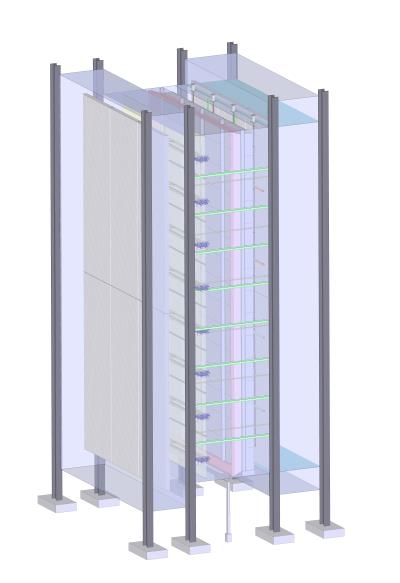

CAD model of the AIG inside the CCGT facility

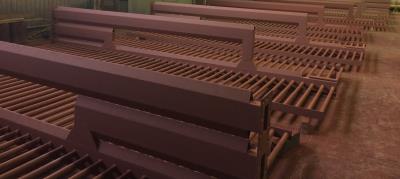

Ammonia injection grid during manufacturing

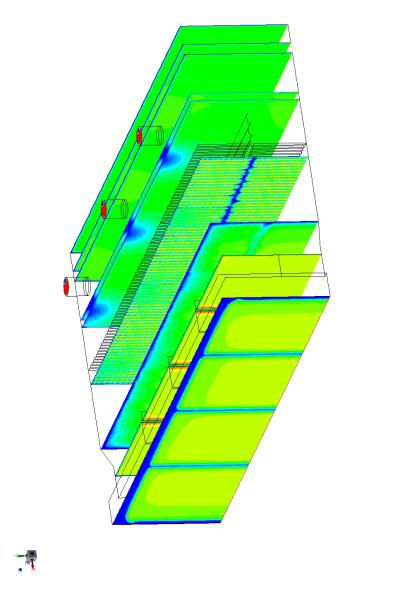

CFD plot showing the velocity distribution inside the CCGT with AIG installed
